Name： White double controller magnetic blinds

Frame：bilateral frame

Controller： Left Lifting Right Tilting OR Left Tilting Right Lifting

Cavity standard： 19mm&16mm

Glass colour： clear+clear OR clear+ Low-E

Glass thickness： 3.2mm-6mm

Slats width: 12.5mm,15mm,16mm

Blinds width： 300mm-1600mm

Blinds height： 300mm-2500mm（Area ≤ 3㎡）

Energy conservation： K ≤2.4

Sunshade performance：SC ≤24%

Service life：Lifting OR Tilting more than 60,000times

Certification: CCC, IGCC

Supply ability: 10000 Square meters per month

Lead time: 30 days ( 1-1000 square meters),to be negotiated( >1000 square meters)

Packing:（1）Interlay paper OR EPE foam between two sheets (2)Seaworthy wooden crates (3)Iron belt for consolidation

After-sale Service:Online technical support, Free spare parts.

Product Description

We are a manufacturer of Double glazed integral blinds/magnetic double glazed blinds with over 10-year experience, We have advanced and mature technology, integrating external sunshade devices, insulating glass and indoor curtains. It truly realizes the four-in-one external sunshade system. It avoids the problem of complicated installation of external sunshade decoration and affecting the architectural effect!

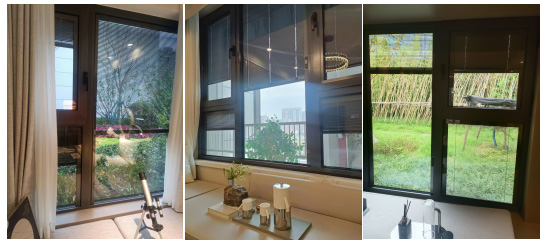

Our magnetic control double-glazed blinds offer a versatile and contemporary means of privacy and shading suitable for large door panels, screens, office partitioning, store fronts, residential glazing and commercial building envelopes.

The slats is assembled and permanently sealed within the double glazing,and it’s tilting and lifting by operating the magnet controller. This type of integral blinds with double manual magnetically operated controllers on two sides. One controller to tilt the blinds, another one to lift the blinds.

Product Features

1)sunshine and heat insulation

In summer, the fully spread out blinds sheets can effective block the direct sunshine and its hollow glass with 19mm air layer can effectively prevent the heat from entering inward. The integral blinds sheets can prevent the formation of air convection and achieve heat insulation.

2) heating and heat preservation

In winter, the integral blinds are fully spread in. The sunshine may go directly indoors in the day for heat accumulation while in the night, the blinds will be fully spread out, as can effectively reduce the loss of heat outward for heat insulation.

3) sound and radiation proof functions

the 19mm air layer plus the built-in blinds adds to the superior sound-proof effect. The blinds slats can block the intrusion of various frequency ranges of lights.

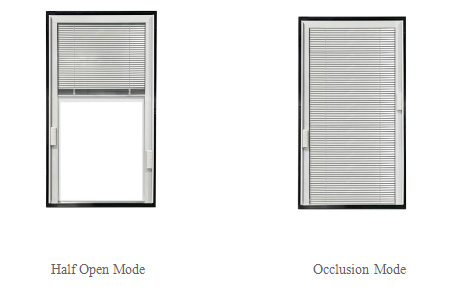

4) multi-angle light adjustment

the blinds slats at any height can rotate by 180 degrees, of which the free adjustment function can satisfy the user’s demand for lighting angles.

4) prevent the dust and pollution,easy to clean

The structure with DGU can block the penetration of air or substance from into the hollow glass. Moreover, the built-in blinds slats need no cleaning.

5) prevention of frost

the DGU has the advantages of air and water tightness, which can block the outside air from coming inside so as to avoid the frost.

7)fire prevention

the tempered glass and aluminum-magnesium blinds slats will not be ignited by naked flame or release heavy smokes. They can effectively minimize the risks of fires.

8) eco-friendly

no pollution will occur during the production and use. The air-tightness keeps the blinds sheets from being polluted so as to avoid complicated washing and optics pollution.

9) easy operation

the only handle can spread out and in the blinds sheets and achieve the light control. The handle can be installed according to the height of the doors and windows and for operation conveniences.

Q: Are you manufactory or trade company?

A: we are manufactory, we have several production lines and professional worker team,from cutting,coating,experienced quality control team as well as mature sales and service team.

Q: How to get a sample?How long can I get the samples?

A: We supply free 1 set samples and customer pays for the postage. Usually for four or seven days.

Q: How much the transportation freight of samples?

A: The freight depends on the weight and package size and your area.

Q: Would you produce OEM/ODM brand or design?

A:Yes,we can do the design according to your sample,and printing your brand logo on handle.

Q: Would you offer size measurement service or installation service?

A: Sorry, we do not offer size measurement and installation service for small projects, as we are hard to win the working visa, but if the project big and we will find out the solution by recommend local team to offer size measurement and installation then.

Q:What’s your payment items?
A:Normally, we accept 50% T/T in advance as the deposit,and balanced payment before delivery.

Q:What’s the trade terms?

A: Accept EXW, FOB(shanghai) items regularly.If you have special needs, please contact our sales.

Q:How to place a order?

A: 1.Place order with saler;

2.Make payment for deposit;

3.Sample making for confirmation before mass production;

4.After sample confirmed, mass production start;

5.Goods are finished,inform buyer to make payment for balance; .

6.Delivery.

Q: What’s your advantage?

A: (1)Competitive price  (2)High quality (3)One stop purchasing (4) Fast response and professional suggestion on all inquiries (5) Flexible order amount for products (6) with a timely release of new/latest products (7)strict inspection before products packaging (8)after orders, the whole production process will be following up.
