Name： Roller integral blinds

Colour: white,gray,brown,silvery,rose gold and customized

Cavity standard： 21mm

Glass colour： clear+clear OR clear+ Low-E

Glass thickness： 3.2mm-15mm

Slats width: 12.5mm,15mm,16mm

Blinds width： 480mm-3000mm

Blinds height： 300mm-3200mm（Area ≤ 5㎡）

Energy conservation： K ≤2.4

Sunshade performance：SC ≤24%

Service life：Lifting OR Tilting more than 60,000times

Certification: CCC, IGCC

Supply ability: 10000 Square meters per month

Lead time: 30 days ( 1-1000 square meters),to be negotiated( >1000 square meters)

Packing:（1）Interlay paper OR EPE foam between two sheets (2)Seaworthy wooden crates (3)Iron belt for consolidation

After-sale Service:Online technical support, Free spare parts.

Product Description

We are a manufacturer of Double glazed integral blinds/magnetic double glazed blinds with over 10-year experience, We have advanced and mature technology, integrating external sunshade devices, insulating glass and indoor curtains. It truly realizes the four-in-one external sunshade system. It avoids the problem of complicated installation of external sunshade decoration and affecting the architectural effect!

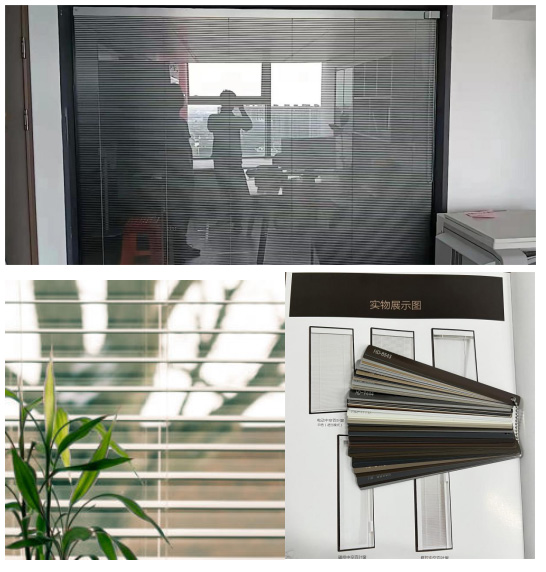

Our magnetic control double-glazed blinds offer a versatile and contemporary means of privacy and shading suitable for large door panels, screens, office partitioning, store fronts, residential glazing and commercial building envelopes.

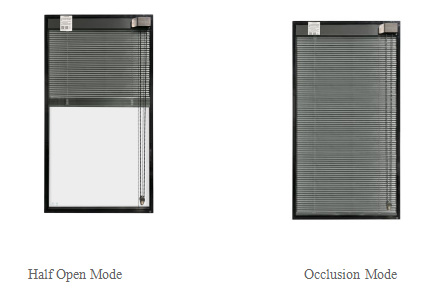

For the oversized integrated blinds, the manual magnetic control system has limitations on the area due to the gravity of the blinds slats and the magnetic range of the magnet. If the motorized system is selected, the cost will be higher than the budget. At this time, we can choose this kind of integrated blinds with roller, which can be used for large-area integral blinds while controlling the cost.This type of product controls the Lifting of the blinds slats by quickly pulling the pull rope on the right side, and slowly pulling to adjust the Tilting.

The Main Advantages

1) No Dust! No Cleaning! No Damage!

2) Sound Insulation: The tested value of sound insulation is 36dB

3) Heat Protection: The heat transfer coefficient is ≤2.4

4) U-Valves Control: The shading coefficient is ≤24%

5) Safety: The two panels are tempered glass with high wind load resistance performance, requiring no hidden trouble for fire disaster unlike traditional curtains.

6) Economics: Environmental protection and energy saving, applicable to large area integrated glass.

Q: Are you manufactory or trade company?

A: we are manufactory, we have several production lines and professional worker team,from cutting,coating,experienced quality control team as well as mature sales and service team.

Q: How to get a sample?How long can I get the samples?

A: We supply free 1 set samples and customer pays for the postage. Usually for four or seven days.

Q: How much the transportation freight of samples?

A: The freight depends on the weight and package size and your area.

Q: Would you produce OEM/ODM brand or design?

A:Yes,we can do the design according to your sample,and printing your brand logo on handle.

Q: Would you offer size measurement service or installation service?

A: Sorry, we do not offer size measurement and installation service for small projects, as we are hard to win the working visa, but if the project big and we will find out the solution by recommend local team to offer size measurement and installation then.

Q:What’s your payment items?

A:Normally, we accept 50% T/T in advance as the deposit,and balanced payment before delivery.

Q:What’s the trade terms?

A: Accept EXW, FOB(shanghai) items regularly.If you have special needs, please contact our sales.

Q:How to place a order?

A: 1.Place order with saler;

2.Make payment for deposit;

3.Sample making for confirmation before mass production;

4.After sample confirmed, mass production start;

5.Goods are finished,inform buyer to make payment for balance; .

6.Delivery.

Q: What’s your advantage?

A: (1)Competitive price  (2)High quality (3)One stop purchasing (4) Fast response and professional suggestion on all inquiries (5) Flexible order amount for products (6) with a timely release of new/latest products (7)strict inspection before products packaging (8)after orders, the whole production process will be following up.
